Description

1 PRODUCT DESCRIPTION

The Puntium Fully Automatic Paint Tinting Machine is a high-efficiency, independently operated color-matching system designed for industrial paint stores, professional tinting centers and industrial coating projects. It supports both coating retail and industrial batch-tinting requirements.

2 CORE PERFORMANCE ADVANTAGES

2.1 Extensive Color Coverage

• A built-in database of more than 100,000 colors covers major Chinese and international color systems, including GSB and RAL. Common market colors can be retrieved with one click.
• Precise color measurement and custom matching from physical samples support personalized color requirements for construction machinery, industrial anticorrosive coatings and retail coatings.
• Compatible with four major industrial coating systems: alkyd, epoxy, acrylic and polyurethane. The complete colorant range complies with GB 30981 and contains no heavy metals.

2.2 Precise Color Reproduction

• A high-precision tinting machine, professional spectrophotometer and proprietary AI color-matching algorithm provide quantitative control throughout the tinting process.
• The color difference is consistently controlled within ΔE ≤ 0.5, making the difference nearly indistinguishable to the human eye. Colors remain highly consistent within and across production batches.
• On-screen color values, measured sample data and the finished coating film are matched, replacing experience-based judgment with stable and repeatable digital color formulation.

2.3 Rapid Delivery

• The fully automated workflow starts the tinting program with one click, eliminating complex manual ratio calculations.
• Faster tinting enables customers to collect small-batch orders on the same day.
• It reduces the need to stock large quantities of finished paint, shortens order lead times and improves customer satisfaction.

2.4 Simple and Intelligent Operation

• The intuitive software interface allows new employees to operate the system independently after short-term training, without requiring an experienced colorist.
• The cloud-based formula library is updated automatically in real time, continuously synchronizing optimized industry color-formulation data.
• Automated error-prevention mechanisms and AI-assisted control reduce human operating errors by more than 80% and minimize waste of colorants and base paints.

2.5 Flexible Compatibility

• Compatible with containers from 1 L to 20 L, supporting both single-container orders and large-volume production.
• Suitable for paint retail stores, construction machinery applications, industrial anticorrosion projects and marine coatings.
• The 2026 model features an upgraded material-conveying rail for easier loading and unloading, together with a redesigned machine appearance.

2.6 Stable and Reliable Support

• The cloud system provides continuous online service, real-time automatic formula backup and one-click remote restoration to protect essential color-matching data.
• Implementation support includes promotional materials, store image design, equipment training and color-matching training. Online operating tutorials are updated continuously, with 24/7 online assistance.
• A professional technical team provides equipment installation, commissioning, maintenance and formula guidance.

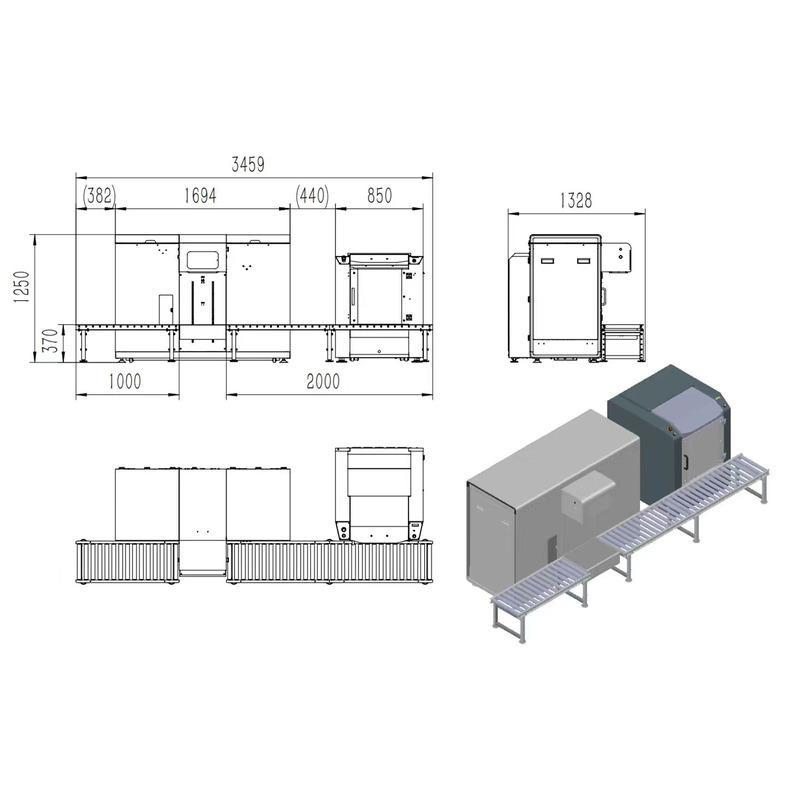

3 DIMENSIONS

4 ELECTRICAL SPECIFICATIONS

The machine supports globally used voltage standards and can be installed in domestic and overseas stores and factories.
